The Connection Settings section allows you to add, edit, and remove email server accounts (SMTP/IMAP) that the system uses for email notifications.

To view the connection settings go the System Management > System Notifications > Connection settings section.

The Connection settings report list contains the following information:

  • ID: The unique identification number of the Connection Setting.

  • Name: The name of the Connection Setting.

  • Type: The type of the Connection Setting (SMTP - Simple Mail Transfer Protocol / IMAP - Internet Message Access Protocol).

You can narrow down the search results by using the “Filter” field. Enter the ID, name, or type of the connection (SMTP/IMAP) and click the “Enter” button to proceed with the filtration.

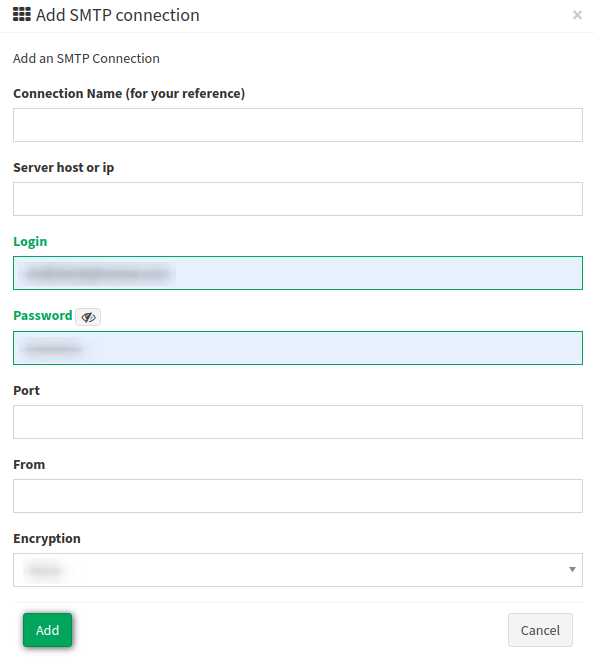

To add the new SMTP Connection Setting, click the “Add SMTP connection” button, and fill in the following fields in the “Add SMTP connection” pop-up window:

  • Connection Name (for your reference): Enter the name of the Connection Setting for your reference.

  • Server host or ip: Enter the name of the server host or ip address.

  • Login: Enter your login.

  • Password: Enter your password.

  • Port: Enter the port value. Note: Port must be an integer.

  • From: Enter the From email address.

  • Encryption: Select the encryption type (None/ SLL/ TSL/STARTTLS).

Click the “Add” button to save the new setting connection or click the “Cancel” button to dismiss.

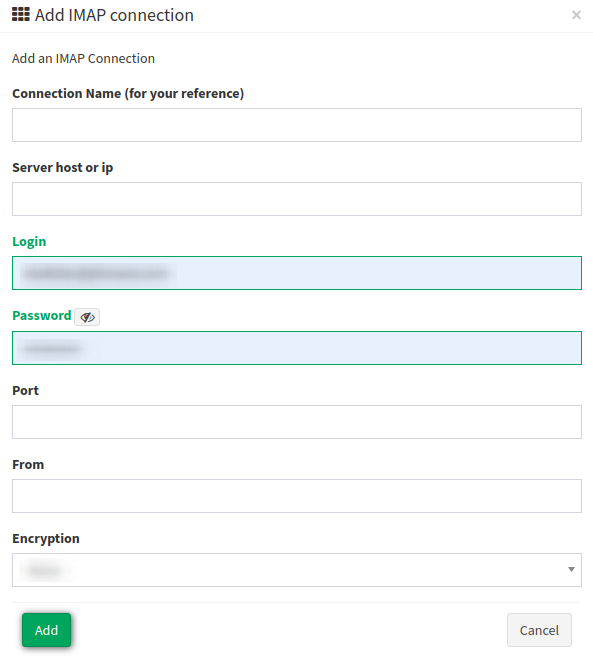

To add the new IMAP Connection Setting, click the “Add IMAP connection” button, and fill in the following fields in the “Add IMAP connection” pop-up window:

  • Connection Name (for your reference): Enter the name of the Connection Setting for your reference.

  • Server host or ip: Enter the name of the server host or ip address.

  • Login: Enter your login.

  • Password: Enter your password.

  • Port: Enter the port value. Note: Port must be an integer.

  • From: Enter the From email address.

  • Encryption: Select the encryption type (None/ SLL/ TSL).

Click the “Add” button to save the new setting connection or click the “Cancel” button to dismiss.

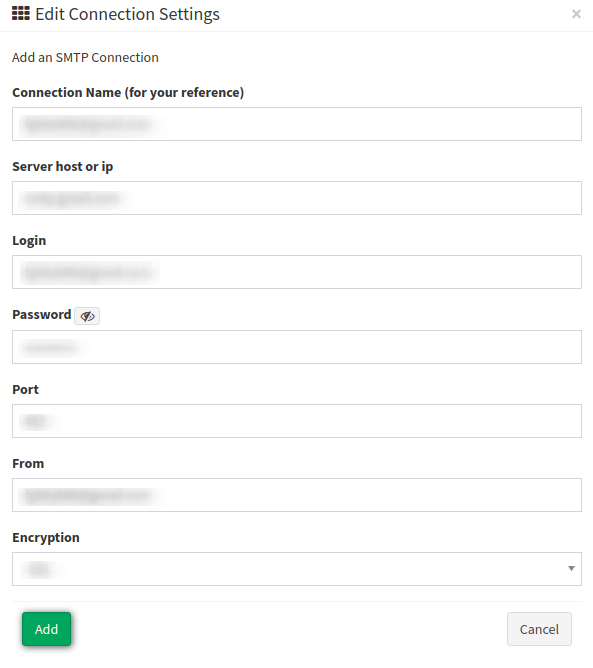

To edit the existing Setting connection click the “Edit Connection Settings” button in the “Action” column and edit in the following fields in the “Edit Connection Settings” pop-up window:

  • Connection Name (for your reference): Enter the name of the Connection Setting for your reference.

  • Server host or ip: Enter the name of the server host or ip address.

  • Login: Enter your login.

  • Password: Enter your password.

  • Port: Enter the port value. Note: Port must be an integer.

  • From: Enter the From email address.

  • Encryption: Select the encryption type (None/ SLL/ TSL/STARTTLS).

Click the “Save” button to proceed with the changes or click the “Cancel” button to dismiss.

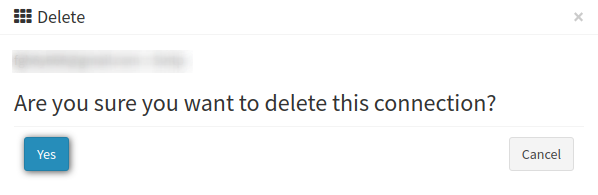

To delete the Setting Connection, click the “Delete” button in the “Action” column and click the “Yes” button to confirm the deletion in the “Delete” pop-up window.

Click the “Test Send” button in the “Actions” column to send a test email. Enter email addresses in the “Recepient Emails” field of the “Test Send” pop-up window. Click the “Send” button to complete the process.
