# Event Tracking Type: Pixel
## The Pixel tracking type allows you to inject JS code into Phonexa’s forms when the selected trigger event takes place.
*Read more about the Event Tracking feature and its configuration in the “Event Tracking (LMS / Call Logic)” Knowledge Base* [*article*](https://support.phonexa.com/event-tracking-lms-/-call-logic?hsLang=en)*.*
This rule can be configured on Product and Publisher levels.
*Read more about Tracking Rule setting up on the Product level in this Knowledge Base* [*article*](https://support.phonexa.com/product-settings-tracking-tab?hsLang=en)*.*
*Read more about Tracking Rule setting up on the Publisher level in this Knowledge Base* [*article*](https://support.phonexa.com/publisher-configuration-tracking?hsLang=en).

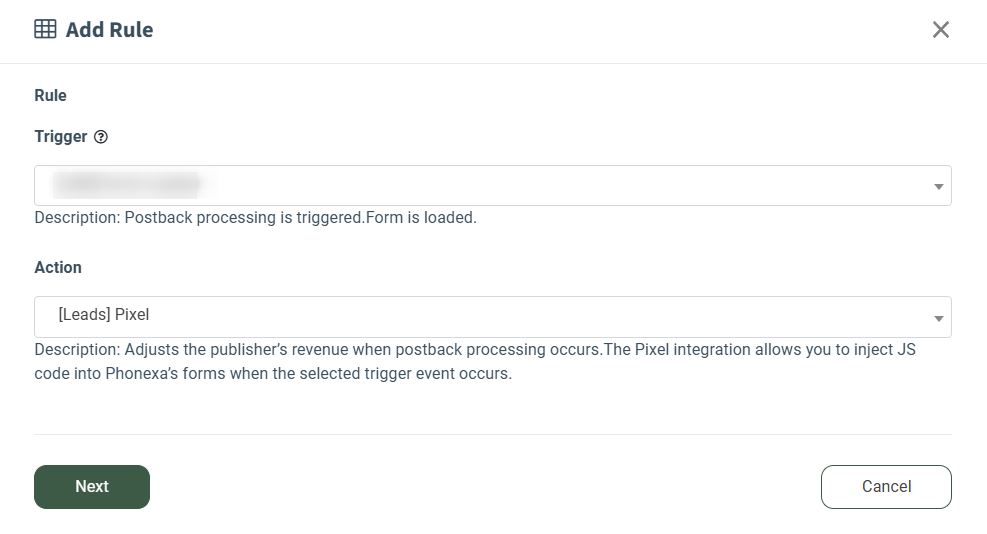

To create this tracking rule, fill in the following fields in the **“Add Rule”** pop-up window:
- **Trigger:** Select the event that triggers the action.
- **\[LMS\] Lead Sold:** The lead is sold through the Campaign.
- **\[LMS\] Form Loaded:** The form is loaded, and the postback processing is triggered.
- **\[LMS\] Lead Rejected:** The lead is not accepted by any Campaign.
- **\[LMS\] Lead Offer Received:** The lead status changed to **"Offer Received"** after a successful ping (*for Ping Post Products only*).
- **\[Call Logic\] AMD:** The answering machine is detected on the Buyer's side.
- **Action:** Select the **“\[Leads\] Pixel”** option.
[](https://support.phonexa.com/hubfs/Event%20Tracking%20Pixel%201.png?hsLang=en)
Once you select the preferable event, click the **“Next”** button to proceed with the setup.

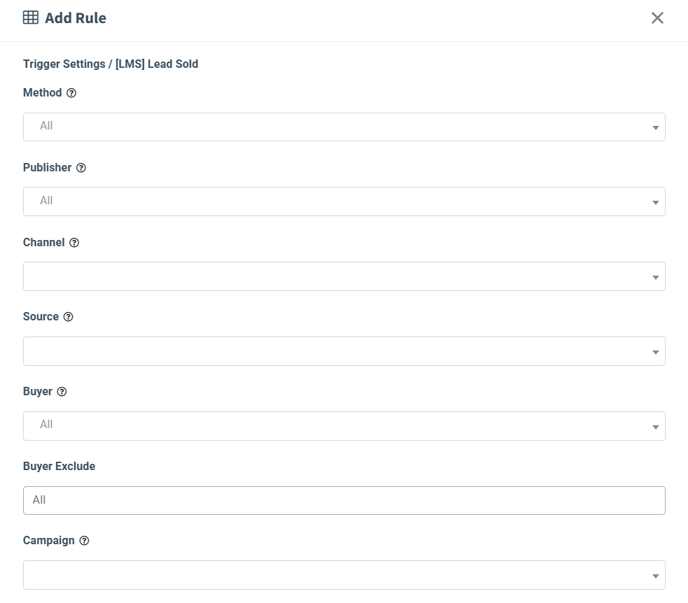

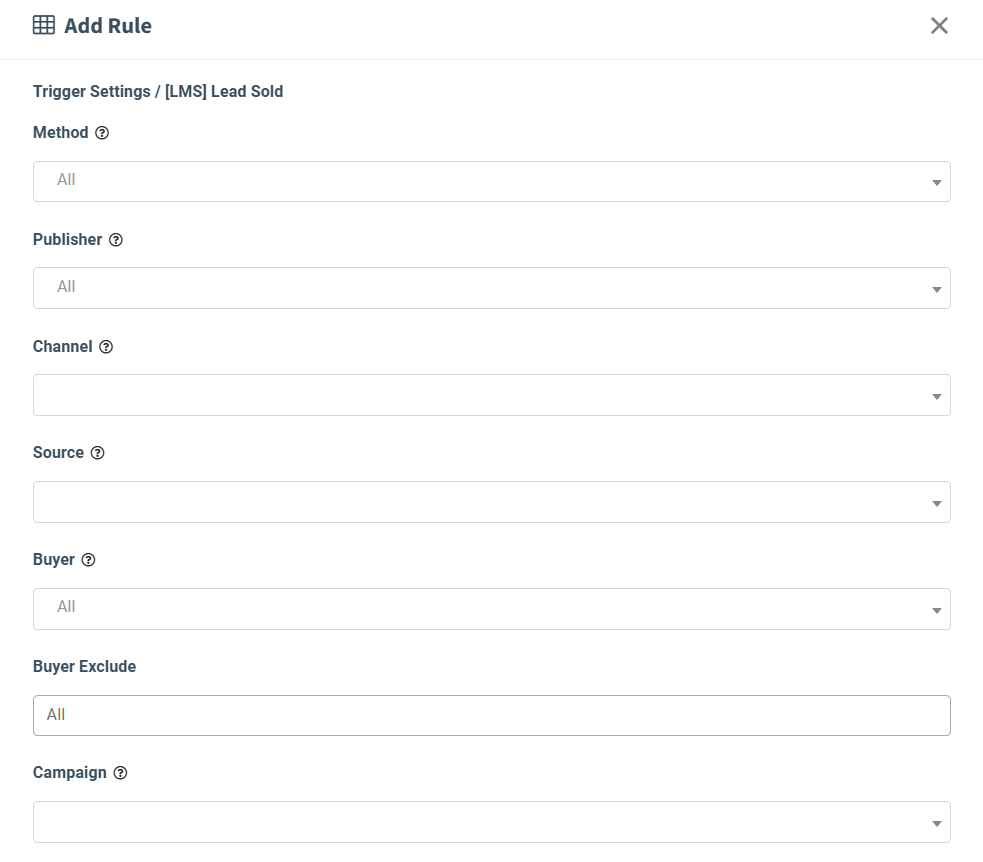

The **“Trigger Settings”** block allows you to set up additional filters for the selected event. The list of available filters may vary based on the user role, platform, and configuration level. The filter fields are optional. If no filters are set up, the action will be triggered for all the leads that fit the event trigger.
Depending on the user role, platform, and configuration level, the following filters for trigger settings are available:
- **Method**: Select the Method (*POST*).
- **Publisher**: Select the Publisher.
- **Publisher Exclude:** Select the Publisher to exclude from the rule.
- **Channel**: Select the Channel.
- **Channel Exclude:** Select the Publisher Channel to exclude from the rule.
- **Source**: Select the Source.
- **Source Exclude:** Select the Source to exclude from the rule.
- **Buyer**: Select the Buyer.
- **Buyer Exclude:** Select the Buyer(s) that should be excluded from the ongoing tracking rule workflow coverage.
- **Campaign**: Select the Campaign.

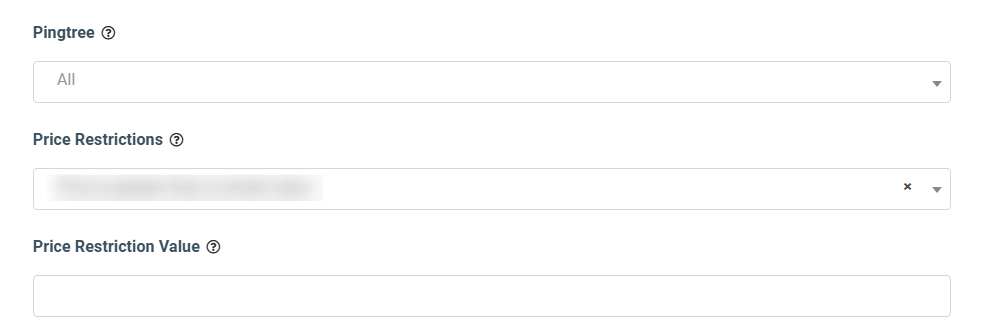

- **Pingtree**: Select the Pingtree.
- **Price Restrictions**: Select the Price restrictions (*Price is greater than 0, Price is greater than a certain value, Price is greater than or equal to a certain value, Price is lower than a certain value, Price is lower than or equal to a certain value, Price range inclusive*). *Note: The “****Price range inclusive****” value is available only for the* ***“Lead Sold****” and* ***“Campaign Sold****” triggers.*
- **Price Restriction Value**: Enter the price value.
- **Min Price:** Enter the minimum price value to trigger the rule by the price range *(available only for the “****Price range inclusive****” value in the “****Price Restrictions****” field)*.
- **Max Price:** Enter the maximum price value to trigger the rule by the price range *(available only for the “****Price range inclusive****” value in the “****Price Restrictions****” field)*.

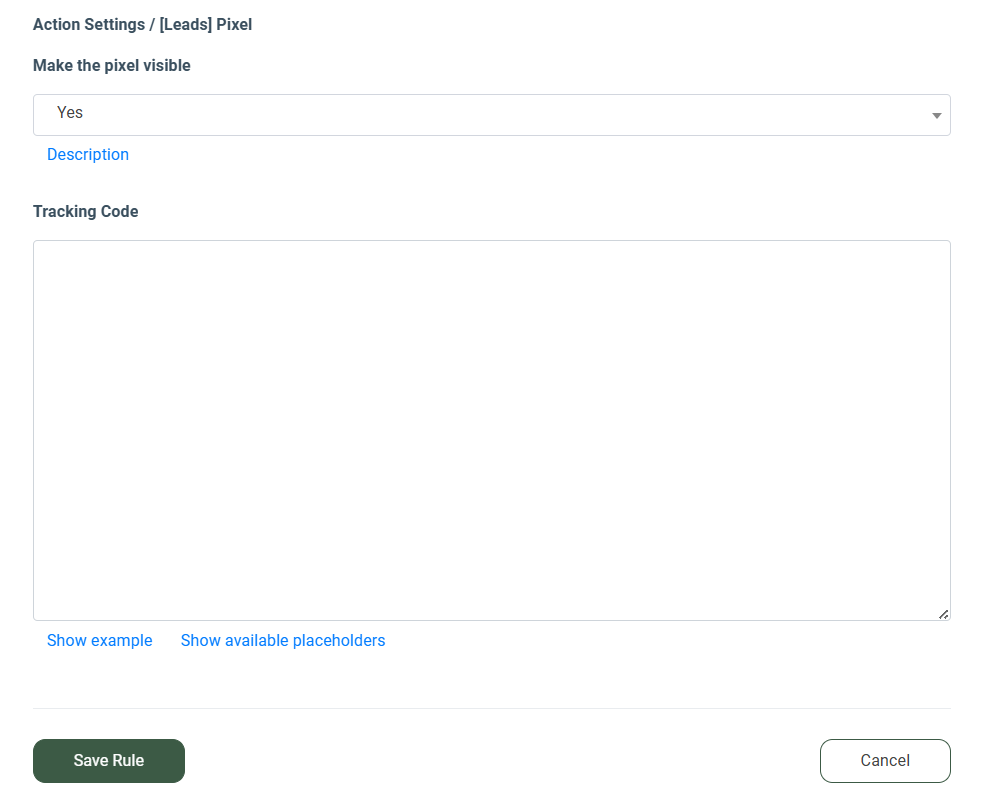

[-1.png?width=688&height=967&name=unnamed%20(67)-1.png)](https://support.phonexa.com/hubfs/Knowledge%20Base%20Import/unnamed%20(67)-1.png?hsLang=en)The **“Action Settings”** block allows you to configure the action required for the rule setup:
- **Make the Pixel Visible:** Select the visibility mode for the tracking code display on the form after the tendering process (*Yes, No*). This setting allows you to hide or display the tracking code provided by the conversion service provider.
- **Tracking Code:** Enter the tracking code that will be posted into the form as provided in the example using the required placeholders. To view the example of the tracking code, click the **“Show example”** button. To view, click the **“Show available placeholders”** button.
Click the **“Save Rule”** button to complete the tracking rule creation.
[](https://support.phonexa.com/hubfs/Event%20Tracking%20Pixel%204.png?hsLang=en)
